Product Description:
Automotive HSD Cable - Z Code is a high-performance cable designed specifically for automotive applications. It offers exceptional data transmission speed and reliability, making it ideal for various in-vehicle systems. With its robust construction and high compatibility, this cable ensures seamless integration with modern automotive technologies.
Features:
- High-speed data transmission: Supports frequencies up to 6 GHz, ensuring fast and efficient data transmission for demanding automotive applications.
- Superior Signal Integrity: Minimizes interference and signal degradation for clear and accurate data transmission.
- Durable: Constructed with premium materials to withstand harsh automotive environments and ensure long-lasting performance.
- High compatibility: Designed to work seamlessly with a wide range of automotive systems and equipment.
- Ease of Installation: Compact design for easy installation in space-constrained areas, reducing assembly time and costs.
- Stable Connectivity: Ensures a secure and reliable connection, reducing the risk of data loss or disconnection.
Technical Parameters:
| HSD | | Electrical Data | | lmpedance | 100Ω | | Frequency range depending on cable type | DC to 6 GHz | | Signal contact resistance | ≤10 mΩ | | Outer contact resistance | ≤7.5 mΩ | | Test voltage | 250 V rms | | Working voltage | 60 V rms | | Mechanical Data | | Mating cycles | ≥25 | | Engagement force | ≤30 N | | Disengagement force | ≥5N | | Retention force latch | ≥ 110N | | Environmental Data | | Temperature range | -40°C to +105°C | |
Applications:
- Automotive Infotainment: Connects various components of the automotive entertainment system to provide high-quality audio and video signals.
- Advanced Driver Assistance Systems (ADAS): Provides reliable data transmission for various ADAS functions to ensure safety and efficiency.
- Navigation systems: Ensure stable and accurate data transmission for GPS and navigation devices.
- Rearview and panoramic camera systems: Facilitates the transmission of high-resolution video from the camera to the display system.
- Digital Instrument Cluster: Connects to digital instrument cluster displays to provide real-time data transmission and display.
- In-vehicle communication system: Supports data transmission between different communication modules in the vehicle.

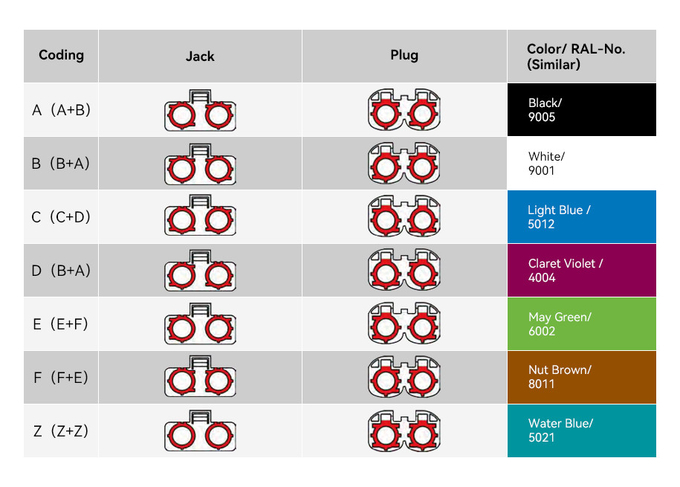

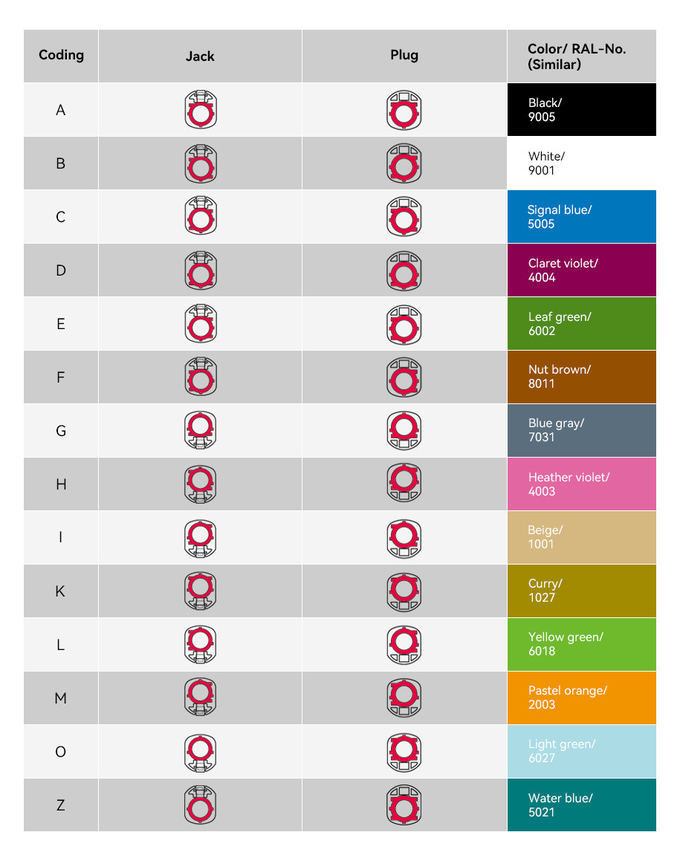

HSD Coding:
Customization:
We accept OEM and ODM orders for our products. We can customize our production to meet the specific needs of our customers to ensure that their particular technical and design requirements are met.
Support and Services:
- Accept OEM and ODM orders: Customized production according to customers' requirements.
- Free samples: Samples are provided free of charge, and customers only need to pay the courier fee.
- Support multiple logistics: Choose the best logistics solution according to customers' needs.
- Fast delivery and first-class service: Provide fast delivery time and excellent customer service.
