HSD LVDS Cable with H Code 4-Pin Connector for Automotive Applications

Name: HSD LVDS Cable with H Code 4Pin Connector for Automotive Applications
Brand: LEADSIGN
Price: 1 USD

Brand Name : LEADSIGN

Model Number : HSD LVDS Cable

Certification : E-Mark

Place of Origin : China

MOQ : 500 PCS

Price : Contact the seller

Supply Ability : 200000 PCS/Month

Delivery Time : 7~14 work days

Packaging Details : Carton size 29*13*11CM,20pcs per carton

Impedance : 100Ω

Code : H Code

Working Temperature : -40℃ ~ +105℃

Cable Length : Customizable

MOQ : 20PCS

Contact Now

Description:

The HSD cable is designed for high-performance connectivity in automotive systems, featuring H code connectors with a 4-pin configuration. Engineered to provide reliable signal transfer and durability, this cable is ideal for various applications within vehicles, ensuring optimal performance and integration.

Key Feature:

Reliable Connectivity: Equipped with H code 4-pin connectors for secure and stable connections.
Enhanced Durability: Built to withstand the demanding conditions of automotive environments, ensuring long-lasting performance.
High Signal Integrity: Designed to provide clear and consistent signal transmission, reducing interference and maintaining data quality.
Compact and Efficient: Space-saving design ideal for tight installation spaces within vehicles.
Ease of Installation: Simple to connect, reducing installation time and complexity.
Versatile Application: Compatible with a wide range of automotive systems for flexible use.

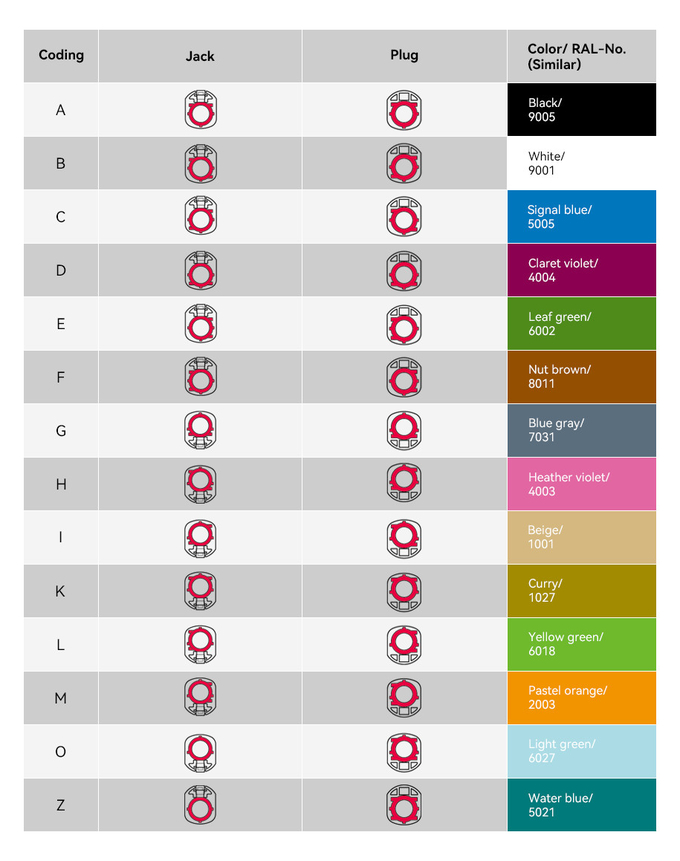

HSD Coding:

HSD LVDS Cable with H Code 4-Pin Connector for Automotive Applications

Technical Parameters:

HSD
Electrical Data
lmpedance	100Ω
Frequency range depending on cable type	DC to 6 GHz
Signal contact resistance	≤10 mΩ
Outer contact resistance	≤7.5 mΩ
Test voltage	250 V rms
Working voltage	60 V rms
Mechanical Data
Mating cycles	≥25
Engagement force	≤30 N
Disengagement force	≥5N
Retention force latch	≥ 110N
Environmental Data
Temperature range	-40°C to +105°C

Application:

In-Car Entertainment Systems: Connects multimedia components for high-quality audio and video performance.
Navigation Systems: Ensures reliable connectivity for GPS and navigation units.
Infotainment Units: Facilitates integration with infotainment systems for enhanced functionality.
Camera Systems: Connects vehicle camera systems for improved driver visibility and safety.
Advanced Driver Assistance Systems (ADAS): Supports data transfer for various ADAS features and components.
Diagnostic Equipment: Useful for automotive diagnostic tools, providing accurate data communication.

Custom Services:

Accepts OEM & ODM orders to meet specific design and application needs.

Support and Services:

Fast delivery time and first-class service.
Samples are free of charge; customers only need to cover the courier fee.
Supports multiple logistics methods to accommodate various shipping preferences.
Accepts OEM and ODM orders for customized solutions.
